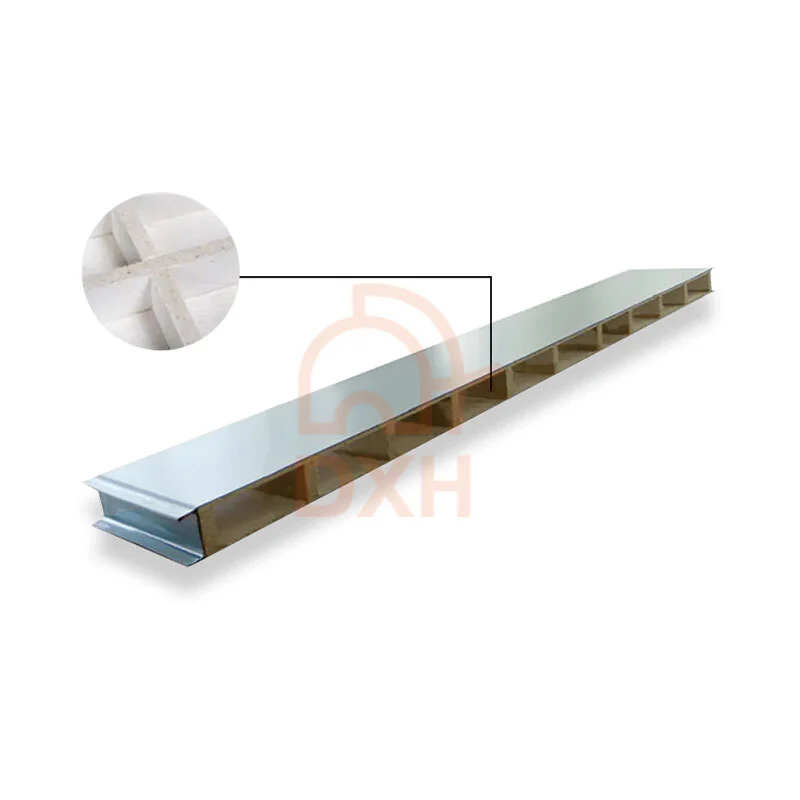

Hollow Glass Magnesium Sandwich Panel
Specifications and Properties
|
Panel Width |
950mm, 1150mm |
|
Core Thickness |
50mm, 75mm, 100mm |
|
Core Material |
Consists of a hollow structure made from glass magnesium oxide (MGO). This is created using a ternary system that includes magnesium oxide, magnesium chloride, and water. |
|
Core Density |
Approximately 24 kg/m³ |
|
Thermal Conductivity |
≤0.041 W/m·K |
|
Fire Resistance |
Class A |
|
Panel Material |
Available options include colored steel, galvanized steel, or stainless steel. |
|
Shape / Profile |
Tongue-and-groove panels |
|
Reinforcement |
An alkali glass fiber network strengthens the core. |
|
Adhesive |
The core is adhered to the face sheets using a heat-activated bonding agent. |
Benefits of Hollow Glass Magnesium Sandwich Panels
Fireproof: The non-combustible core withstands high temperatures and delays fire spread, with a fire resistance of over 70 minutes (Class A rating).
High Temperature Resistance: Can endure up to 1500°C.
Weatherproof: Resistant to harsh weather conditions.
High Density: Lightweight but strong and durable, offering excellent structural integrity.
Sound Insulation: The hollow design and materials help reduce noise, providing ≥ 44 dB soundproof levels.
Thermal Insulation: The magnesium core offers superior thermal insulation, maintaining stable indoor temperatures.
Waterproof and Damp Resistant: High hydrophobicity (≥ 97.5%) prevents moisture damage, making them suitable for industrial and food-grade applications.
Environmentally Safe: Contains no asbestos, formaldehyde, or benzene; suitable for use.
Applications of Glass Magnesium Sandwich Panels
Clean Rooms: Ideal for pharmaceutical, electronics, biotech, food, and beverage industries where high cleanliness and controlled environments are essential.
Laboratories and Research Facilities: Their fire resistance and temperature regulation are highly beneficial.
Industrial and Commercial Buildings: Suitable for interior and exterior walls, partitions, or roofs in cold storage warehouses, temporary structures, and factories.
Modular Buildings: Prefabricated and easy to connect, enabling rapid assembly and disassembly.
